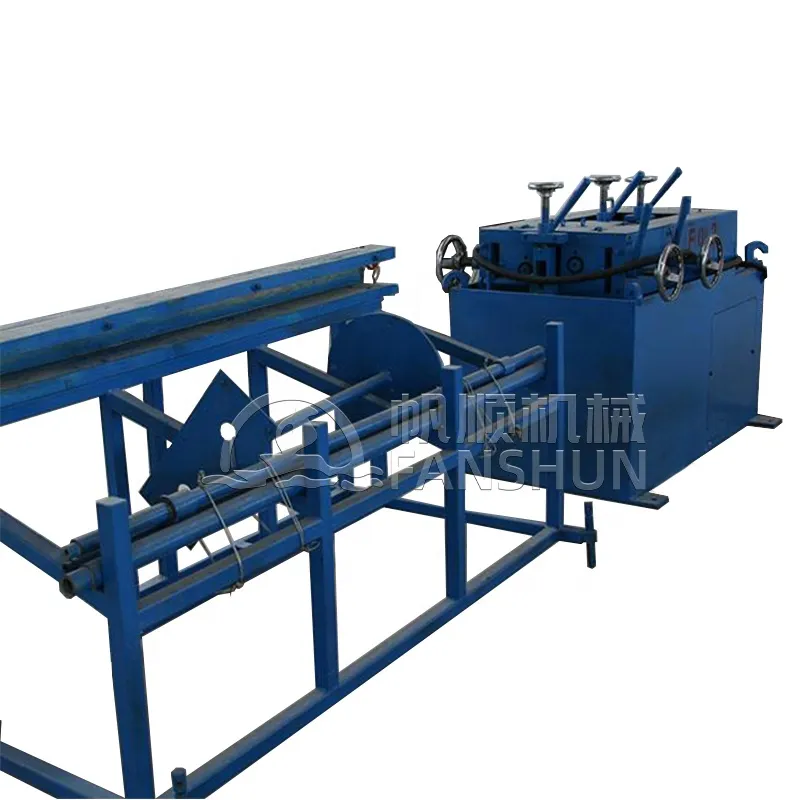

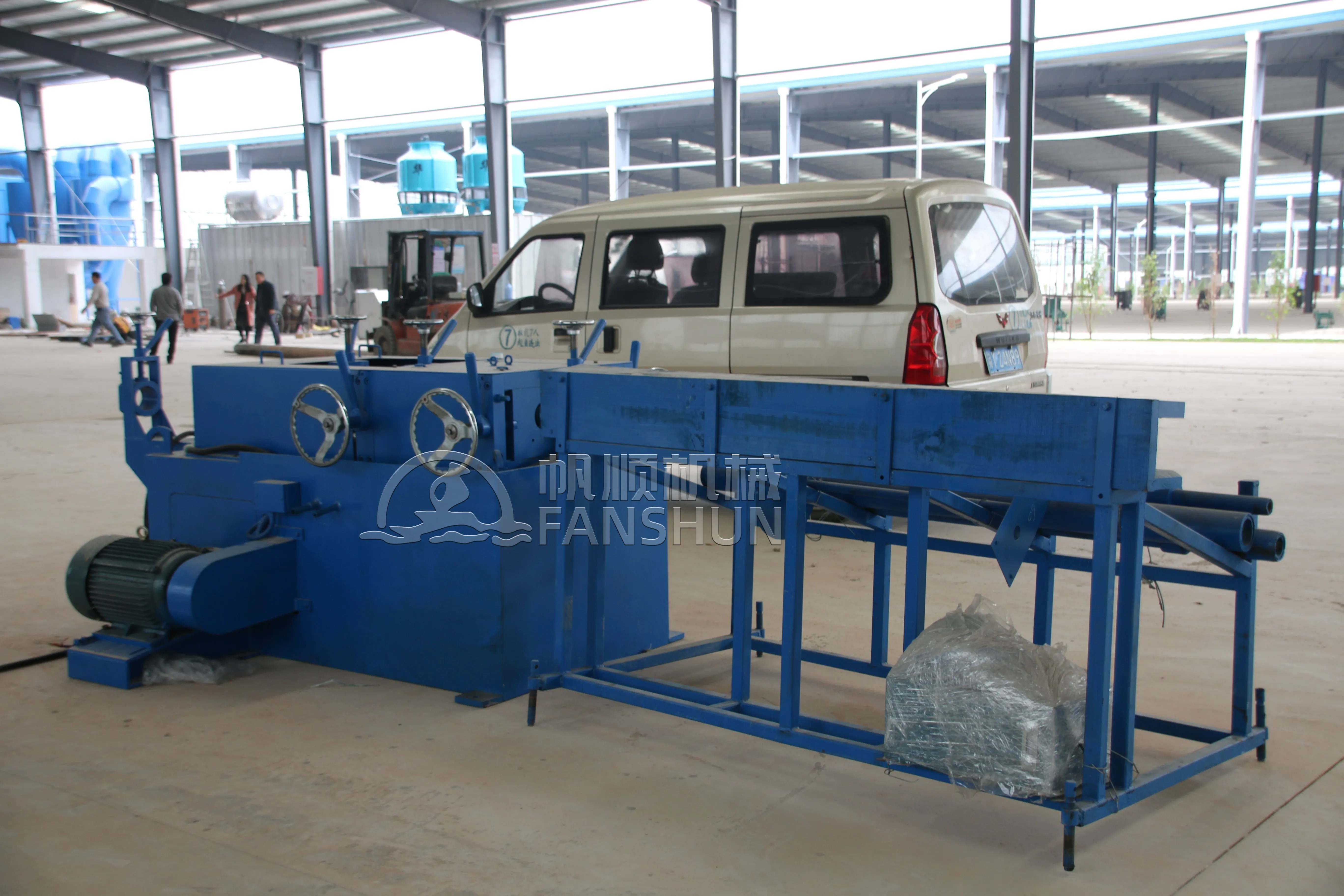

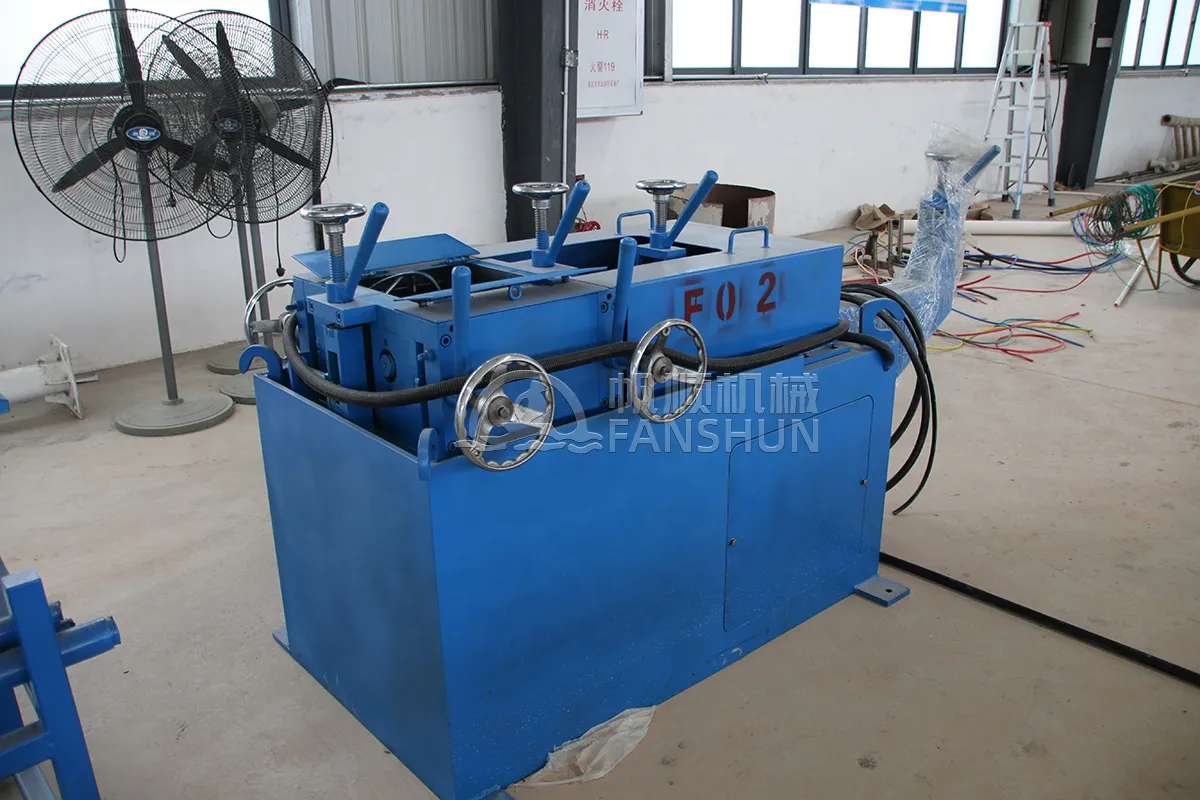

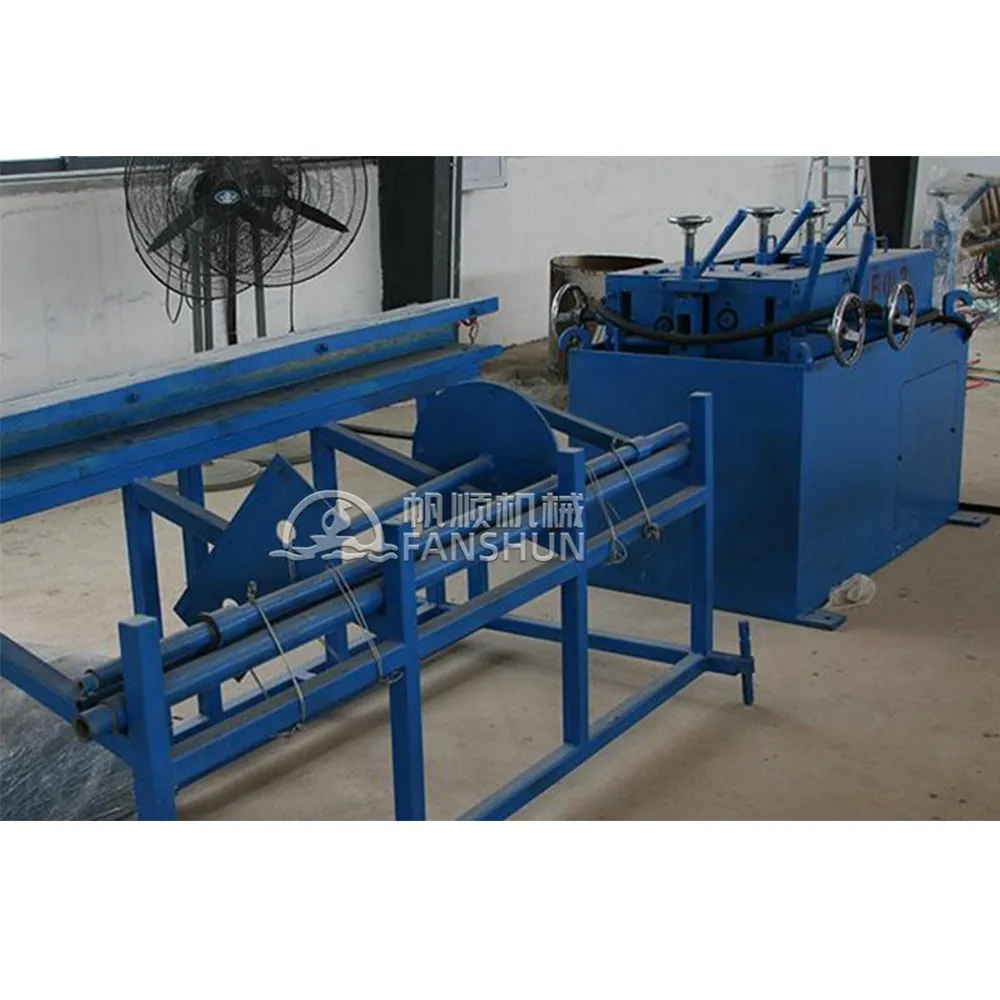

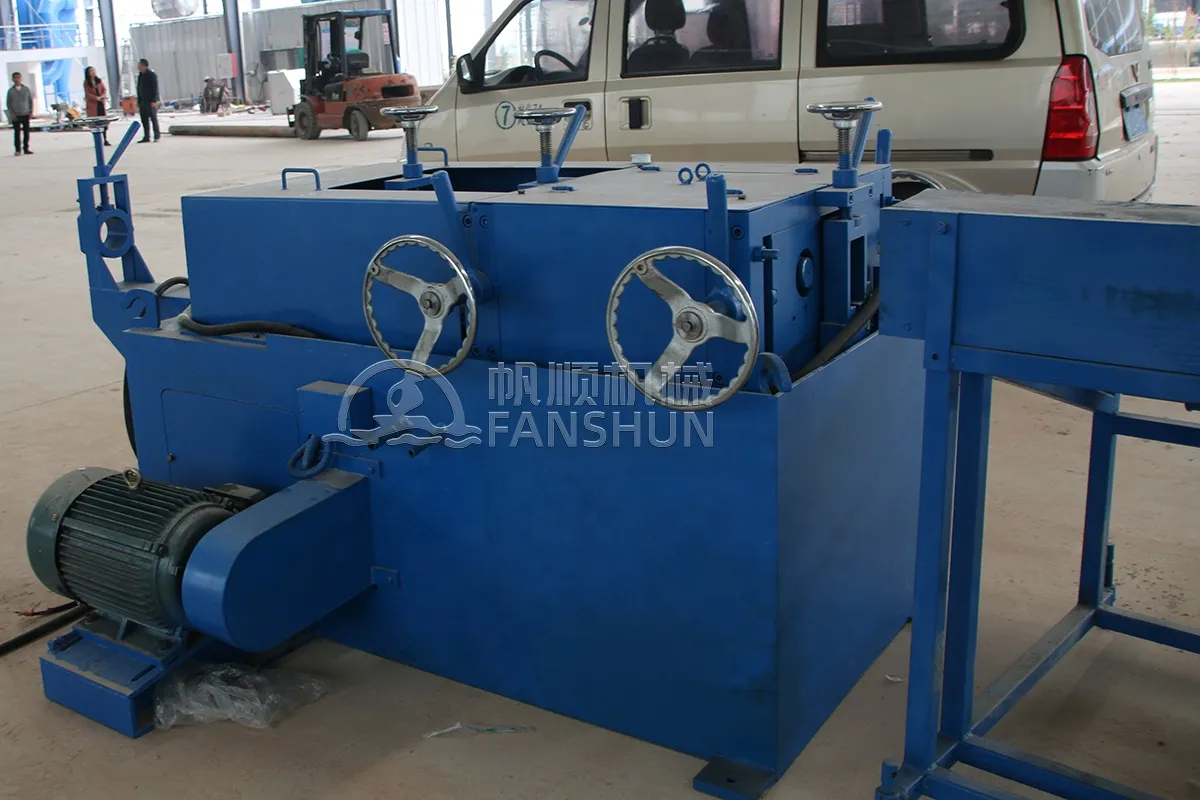

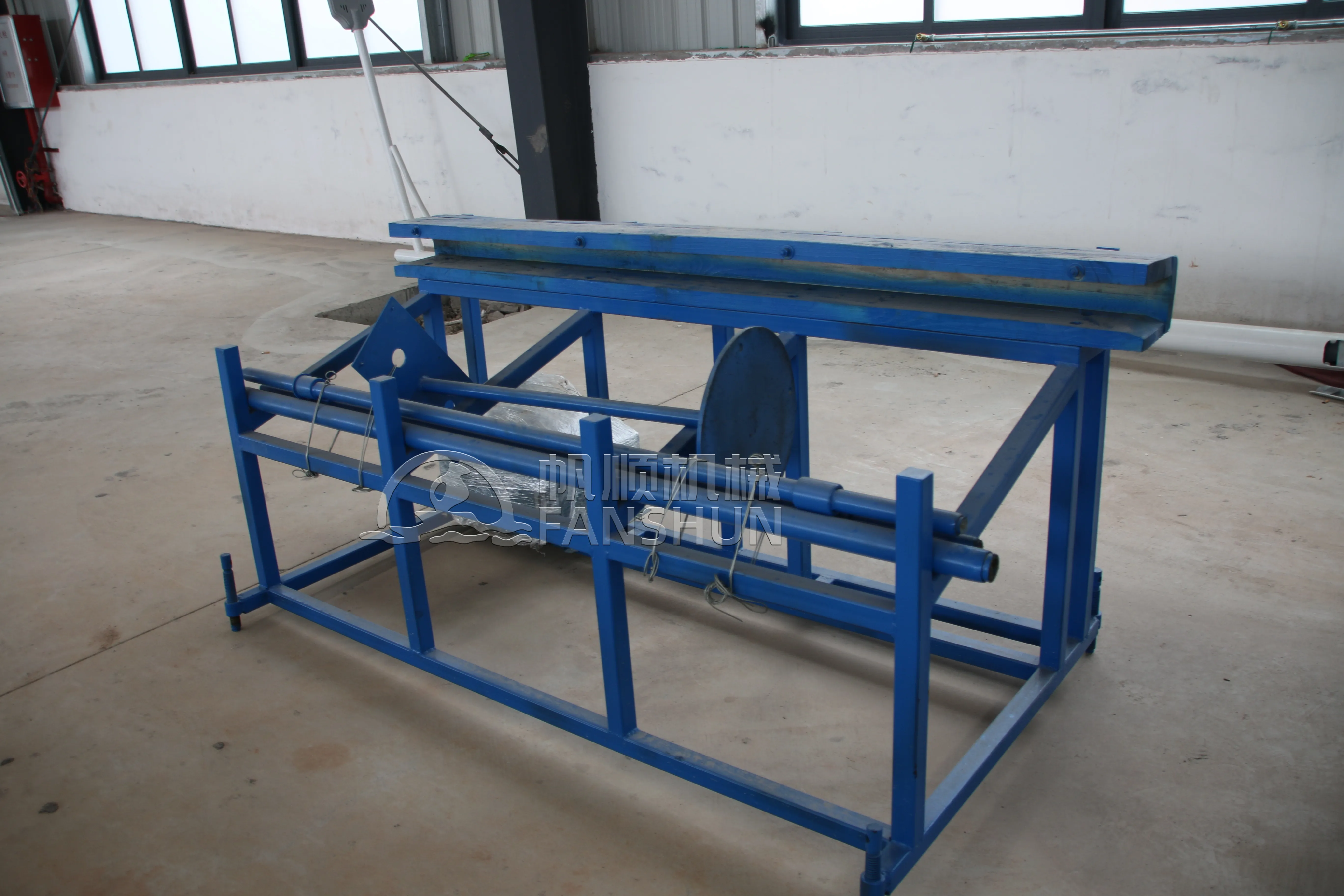

Automatic Metal Rod Straightening Machine

Product name: Fanshun
Product brand: China

Automatic metal rod straightener used for straightening brass rod, purple copper rod, bronze rod, iron rod. This straightener machine can ensure that the surface of the metal rod is basically no scars, good straightness, it has the characteristics of simple operation, convenient adjustment, simple feeding and high production efficiency.

Products Description

Used to straighten brass round bars, red copper round bars, bronze round bars，aluminum round bars, and iron round bars.

Product Size

Model	Unit	TP2-2	TP2-40	TP2-6	TP2-80
Straighten material	Brass, bronze, copper, bar pip
Diameter	mm	Φ5-20	Φ10-40	Φ15-60	Φ30-100
Straighten length	m	1.5-5
Reducer	/	JZQ200	JZQ25	JZQ350	JZQ400
Motor power	Kw	4.5/5.	6.5/8	9/11	18.5/22
Straighten speed	m/min	20-2	15-23	10-1	6-10
Host size（longwidthheight）	mm	215011001000	245014001150	217515001200	29002340150
Host weight	Kg	100	1300	2100	3500
Dimension of unloading rack（longwidthheight）	mm	20001100840	20001100840	20001100890	280016001600
